Radix Slalom
With great pleasure we introduce the Tribal Radix slalom board line. After an extensive R&D spanning several years, Chris and Peter have now finished the first Tribal Boards production series.
Specifications
Size |
Length |
Width |
Volume |
Weight |
Sailrange | |
|---|---|---|---|---|---|---|
| 88 | 239 | 56 (ofo 38) | 88 | tba | 4.5 - 6.3 | |
| 102 | 239 | 63 (ofo 44) | 102 | tba | 5.6 - 7.1 | |
| 118 | 239 | 73 (ofo 50) | 118 | tba | 7.0 - 7.7 | |
| 135 | 239 | 83 (ofo 57) | 135 | tba | 7.7 - 9.5 |
At a glance
- Longer available planing length- improves early planing, efficiency through chop, and glide out of gybes
- Parallel, beveled double concave with overall V for best possible balance, efficiency, and ride comfort
- Refined tail cutouts that provide optimal trim over the widest possible operating range
Radix slalom
Radix slalom 88
Radix slalom 102

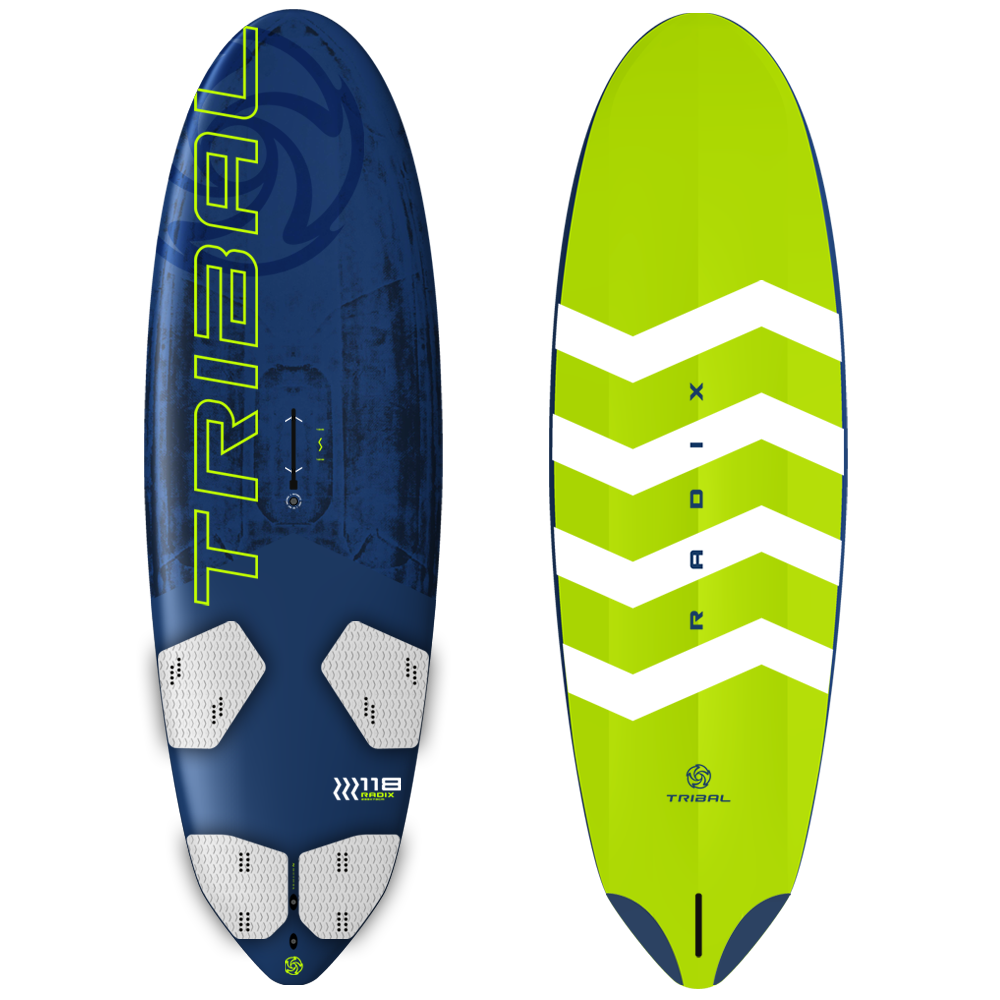

Radix slalom 118

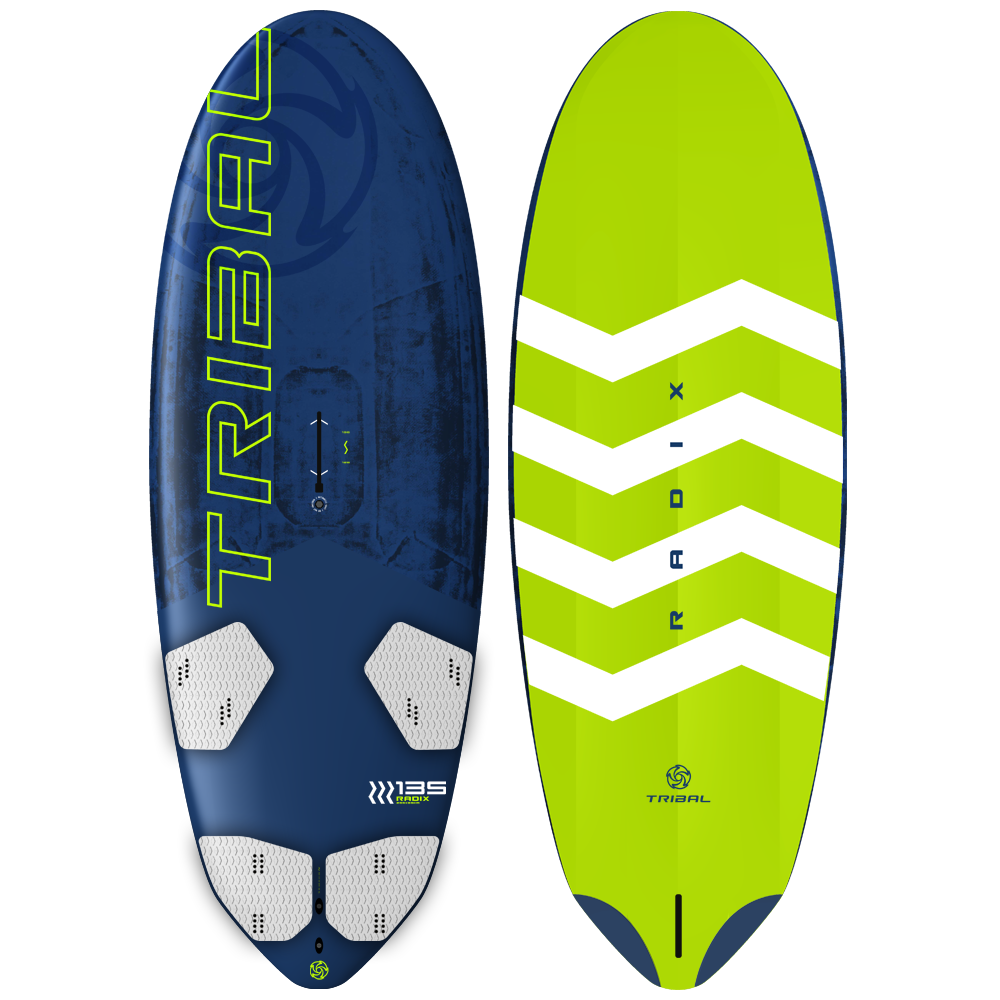

Radix slalom 135
shape
The slightly increased length (239cm) results in a longer available waterline through the critical mid section of the board, for superior low speed performance, stability through chop, lull gliding, and gybing exit. The resulting lower impact angles provide a naturally smooth, controlled trim in rough conditions, allowing significantly higher speed for the conditions. The length is added through the mid section of the board, increasing volume without having to go too thick, and extending the planing length at low speeds which drastically improves efficiency and ease of getting onto the plane.
The parallel outline minimizes both drag, and spray during chop impact events.
Pin Tail - for snap turns and low wake generation, resulting in lower drag.
Advanced Rail Design - rail shapes designed for ultra-clean release resulting in a dry ride, but with deep engagement during gybing for a dependable, stable carve.
Deck Concave - subtle use of deck concaves to stiffen up the deck surfaces without adding extra weight.
Ultra Profile - ergonomically engineered foot profiles, designed for maximum comfort when driving the rail in the most neutral position, and allowing for a maximum steering range through the feet.
Bottom Shape
The well known Lockwood bottom shape has been revised and used throughout the whole range from Tribal.
Beveled Double Concave Hull - unique beveled parallel double concave design to minimize chop impact effects and reduce rail pressure, resulting in the smoothest ride on the market, without adding drag.
The Bevels put less pressure on the rails when hitting chop and they increase the lift on the front part of the rail during gybes which makes it turn faster.
Pronounced double concaves prevent the windward rail from dipping when punching through lulls. Overall V assists in railing the board when desired. The combination makes it especially easy and natural to rail the board when needed, and keep it flat at other times.
Lay up
We chose a full carbon construction with Glass patches for impact. We use BIAX carbon on the bottom and deck of the boards as a very good compromise between stiffness and softness in the boards.
Cut outs
Chine Cutaways - 3 major benefits over conventional cut outs:
- increases active surface area when getting planing
- loosens trim at higher speeds allowing higher maximum speeds
- act as trim tabs when the board might otherwise be tail-walking
Results in an incredibly fast, stable and free trim on the water.
Valve
We make use of a Gore Tex valve in our boards. The valve doesn’t need to be opened and closed as the membrane allows air pressure to be equalized without water getting through.
Strap positions
Vario-Inserts - provide adjustable strap spacing to cater for use with boots or barefoot riding, along with options for forward and rear placement and spacing catering for all shapes and sizes.
Technical Details
markings
patces
